IC-45S
產品描述

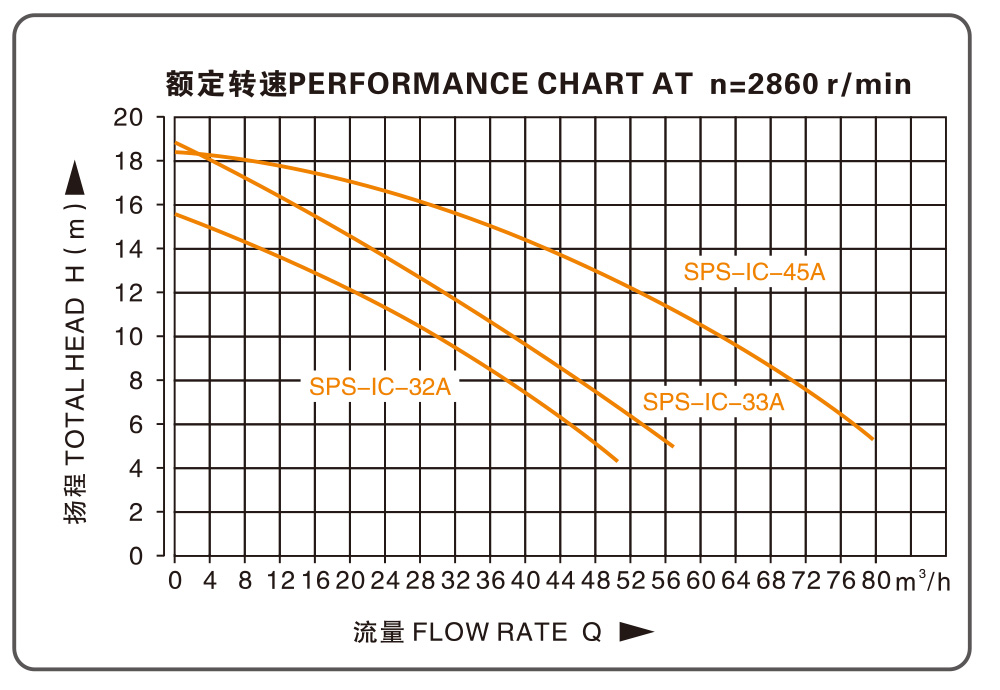

性能曲線 / Performance curve
用途與特點 / Function and Feature

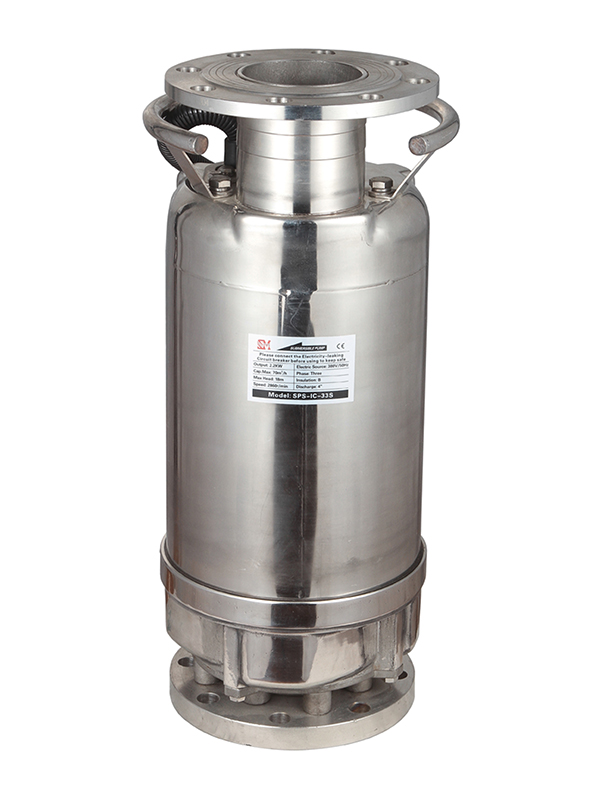

SPS型不銹鋼殼體潛水噴泉泵廣泛用于園林噴灌、園藝場，工礦企業，建筑工地，養殖業，廣場噴泉的排水。其具有排水徹底，易于使用的特點。機殼，濾網，不銹鋼材質的轉子軸，泵體用鑄鐵鍍鉻。(看起來像臺全不銹鋼潛水泵，但價格卻是全不銹鋼SPSN型的50%)。浮球開關能夠根據液位的變化自動控制啟動和停止。電機內的保護裝置過熱或是過電流時自動切斷電源，因此保證了泵甚至在惡劣的環境下安全可靠地運行。
使用條件 / Condition of usag
◎ 電泵潛入水下深度不超過5米;
◎ 水溫不超過40℃;
◎ 水的PH值為6.5-8.5;
◎ 水中固體顆粒直徑不大于0.2毫米。

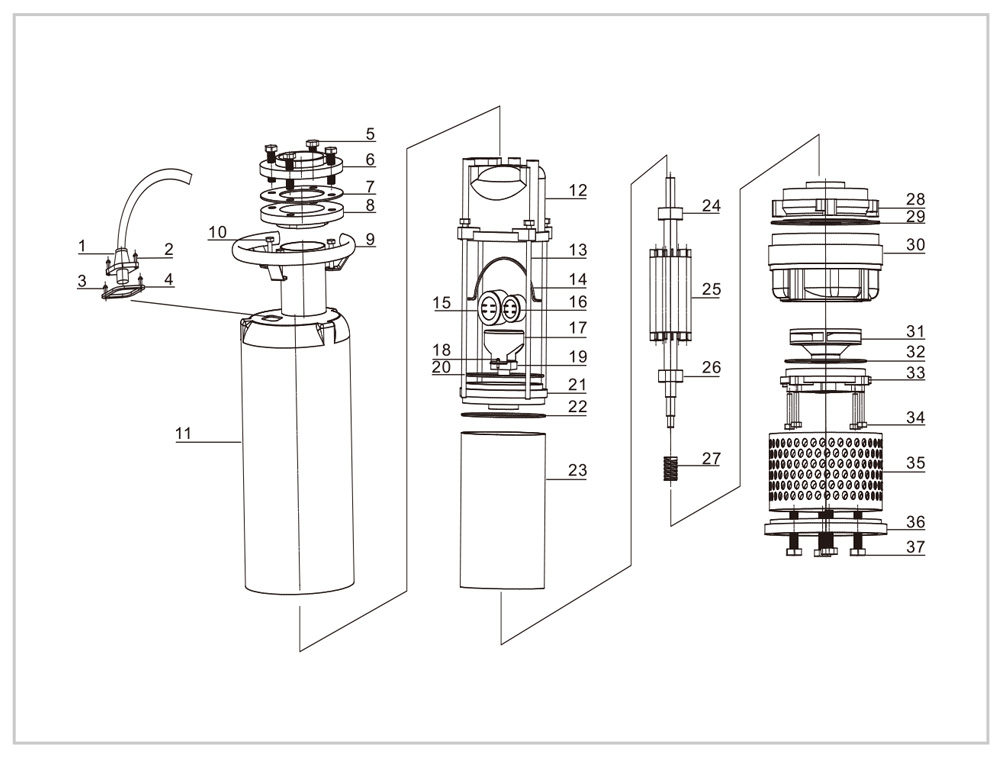

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)
| NO. | DESCRIPTION |
| 1 | Cable jacket |
| 2 | Crossed screw |
| 3 | Crossed screw |
| 4 | Cable hold-down plate |
| 5 | Six-pointed screw |
| 6 | Flange |
| 7 | Flange rubber pad |
| 8 | Flange |
| 9 | Handle |
| 10 | Six-pointed screw |
| 11 | Water tank |
| 12 | Capacitor cover |
| 13 | Six-pointed screw |
| 14 | Pressed ring |
| 15 | Start capacitor |
| 16 | Operate capacitor |
| 17 | Centrifugal switch cover |
| 18 | Crossed-screw |
| 19 | Centrifugal switch |
| 20 | "O" ring |
| 21 | Upper cover |
| 22 | Seal |
| 23 | Frame |
| 24 | Bearing |
| 25 | Rotor |
| 26 | Bearing |
| 27 | Mechanical seal |
| NO. | DESCRIPTION |
| 28 | Down end cover |
| 29 | Seal |
| 30 | Pump body |
| 31 | Impeller |
| 32 | Reinforced seal |
| 33 | Pump cover |
| 34 | Screw |
| 35 | Based net |
| 36 | Chassis |
| 37 | Six-pointed screw |
技術參數 / TECHNICAL DATA
| Model 型號 |
Power 功率 (W) |
Outlet Diameter 出水口徑 (mm) |
Voltage 電壓 (V) |
Max. Flow 最大流量 (L/min) |
Max. Head 最高揚程 (m) |
Weight 毛重 (kg) |
Packing 包裝尺寸 (cm) |
| SPS-IC-32A | 1500 | 80 | 380 | 830 | 16 | 52 | 62x27x27 |
| SPS-IC-33A | 2200 | 80 | 220/380 | 1000 | 18 | 56 | 68x27x27 |
| SPS-IC-45A | 3700 | 100 | 380 | 1500 | 19 | 61 | 62x27x27 |
