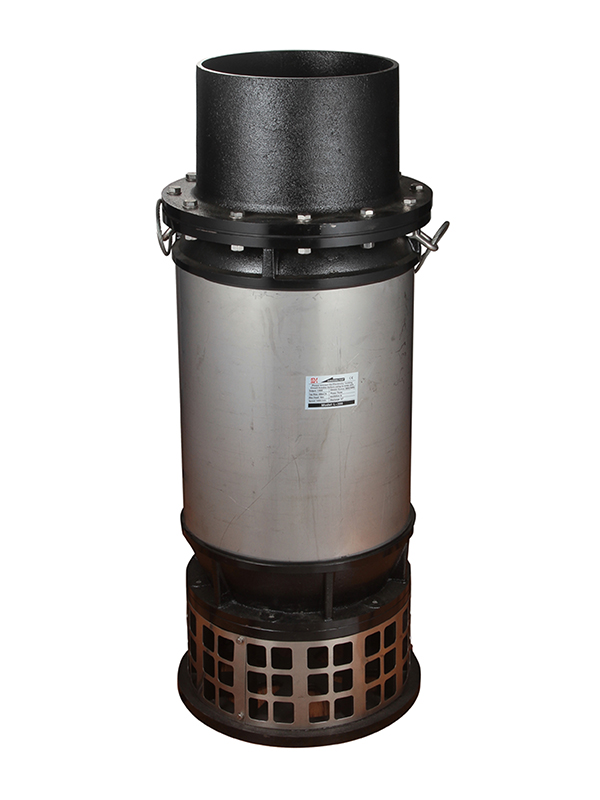

L-300

產品描述

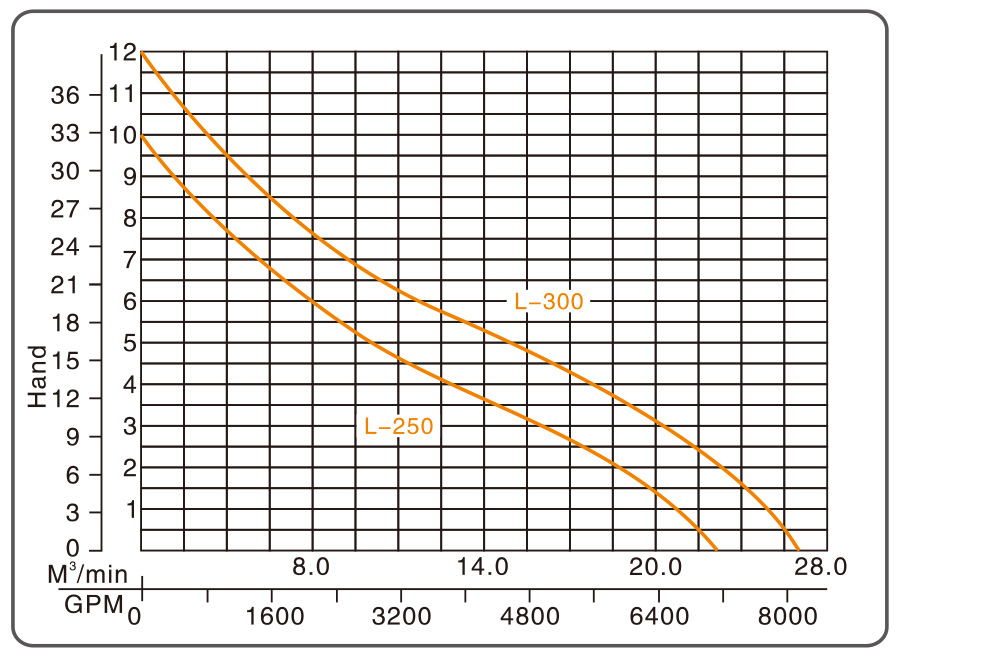

性能曲線 / Performance curve

用途與特點 / Function and Feature

◎ 采用軸流和混流設計，在幾乎沒有振動和噪音的情況下，獲得了較大的流量。

◎ 堅固的結構和緊湊的設計與一個干式電機，雙機械密封和葉輪流導葉的高效率。

◎ 操作方便、節能、低維護。

◎ 高效率電機直接與葉輪連接，達到最佳節能效果。

◎ 泵采用重型外殼制造，電纜引線采用硬化環氧隔離防水，雙機械密封。

◎ 軸與葉輪精密平衡，靜音長壽命。

◎ 鑄造ALBC3材質(鋁青銅)葉輪，具有很強的耐磨性和耐腐蝕性。

規范 / Specifications

項目/Ltem			規格/Description
液體溫度 Liquid temp			0~40℃ (0~104°F )
應用程序 Applications			農業灌溉水產養殖水河水 Agriculture irrigation . Aquacuilture water . River water
最大深度 Max depth			5m
泵組 Pump sect	結構 Structure	葉輪 Impeller	軸流式 Axial-flow
		密封 M.seal	雙重密封 Double M.seals
		軸承 Bearing	球型 Ball type
電機組 Motor sect.	電機 Motor		干式電機4P(1450 rpm) Dry motor 4P(1450 rpm)
	絕緣 Insulation		B類(7.5~20HP:F類)
	頻率 Frequency		50Hz
	保護器 Protector		Auto-cut (預計expect 7.5~20HP)
	材料 Material	框架 Frame	FC-200 (7.5~20HP:SUS304 )
		電纜 Cable	HO7RNF

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
L-300	11000	300	380四級電機	8160	12	190	44x44x115
