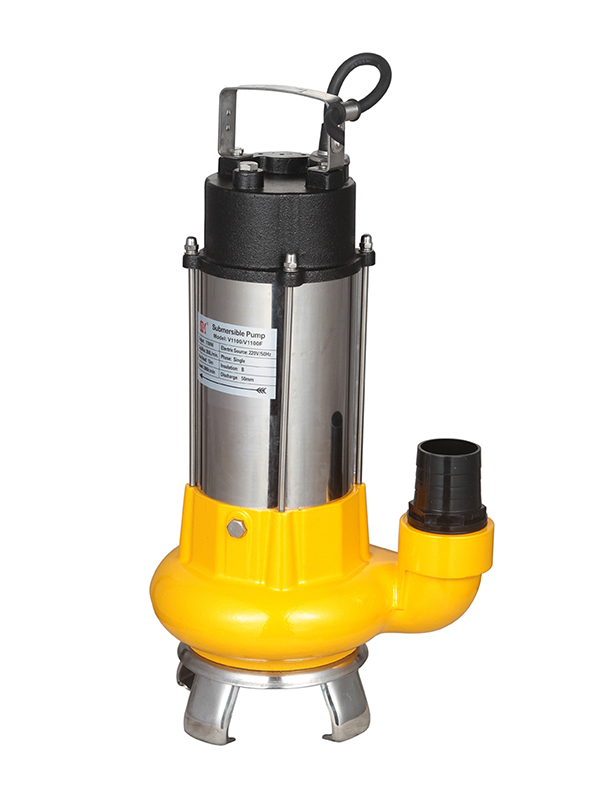

V1100

產品描述

使用條件 / Condition of usag

◎ 以葉輪中心為基準，潛入水下深度不超過5米;

◎ 輸送介質溫度不超過40℃;

◎ 輸入介質PH值為4~10;

◎ 輸送介質的運動黏度為：7x10-7~23X10-6m²/s;

◎ 輸送介質的密度最大為1.2x10³kg/m³。

用途與特點 / Function and Featur

V(WQ)污水潛水泵系列單、三相污水潛水電泵是目前較先進與理想的排污機具。用“V”來代替“WQ”表示泵的過流部件設計獨特，高效區寬廣，具有全揚程(無過載)，能在較大流量范圍內高效安全運行。葉輪的大通道防堵塞設計使泵能有效的輸送含有直徑25-42毫米的固體顆粒的雜質，長纖維等的流體。選用下吸結構和不銹鋼及特殊的鑄鐵制造具有排水徹底和耐腐蝕作用，配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。

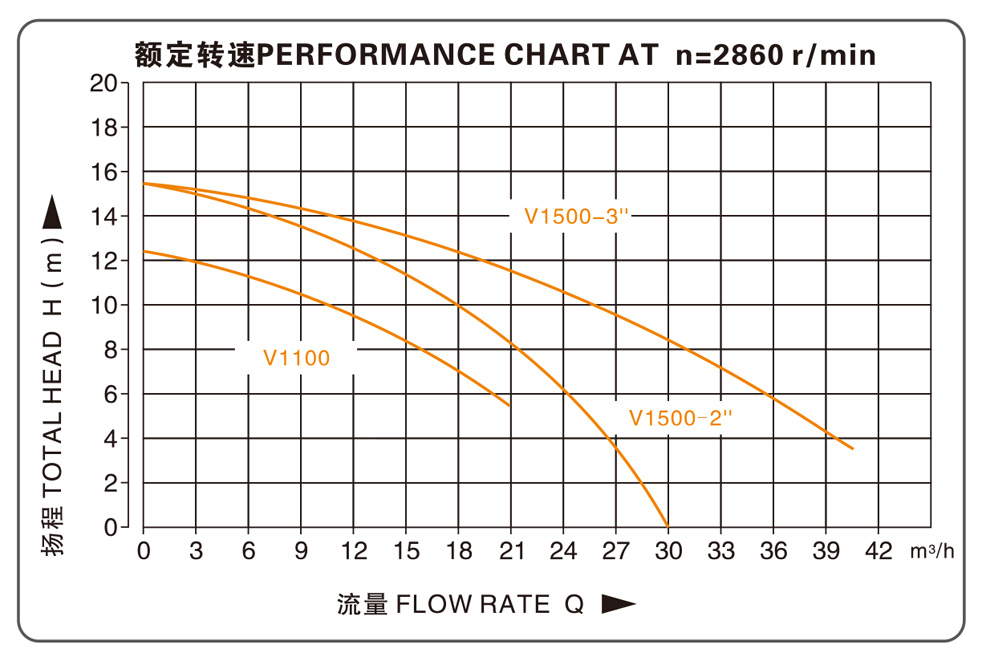

性能曲線 / Performance curve

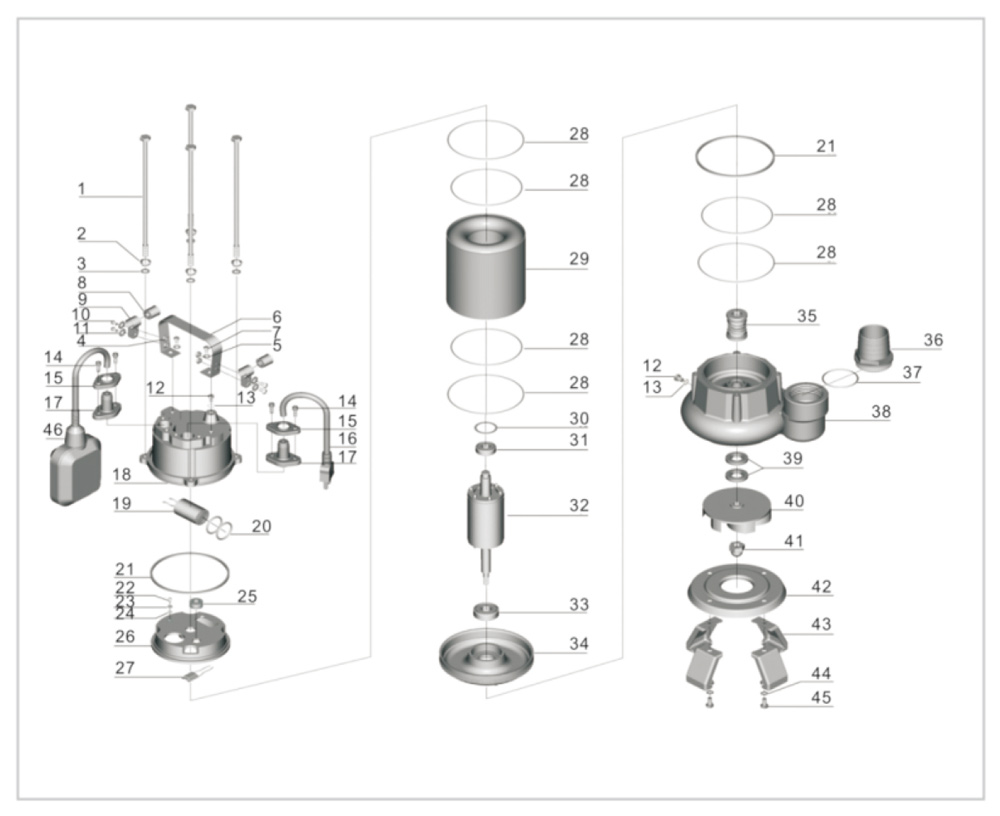

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Stretching washer
3	Washer
4	Bolt
5	Washer
6	Handle
7	Nut
8	Protector
9	Cable presser
10	Washer
11	Screw
12	Bolt
13	"O" ring
14	Screw
15	Flange
16	Cable
17	Cable protector
18	Capacitor cover
19	Capacitor
20	"O" ring
21	Rubber washer
22	Screw
23	Stretching washer
24	Washer
25	Line protector
26	Upper cover
27	Thermal protector
28	"O" ring
29	Motor stator

NO.	DESCRIPTION
30	Undulated washer
31	Ball bearing
32	Rotor
33	Ball bearing
34	Lower cover
35	Mechanical seal
36	Out-let connector
37	"O" ring
38	Pump body
39	Oil seal
40	Impeller
41	Nut
42	Pump cover
43	Base plate
44	Washer
45	Bolt
46	Float switch

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
V1100(F)	1100	50	220/380	350	13	24	28x22x56

型號后加“F”表示裝配浮球開關的水泵
