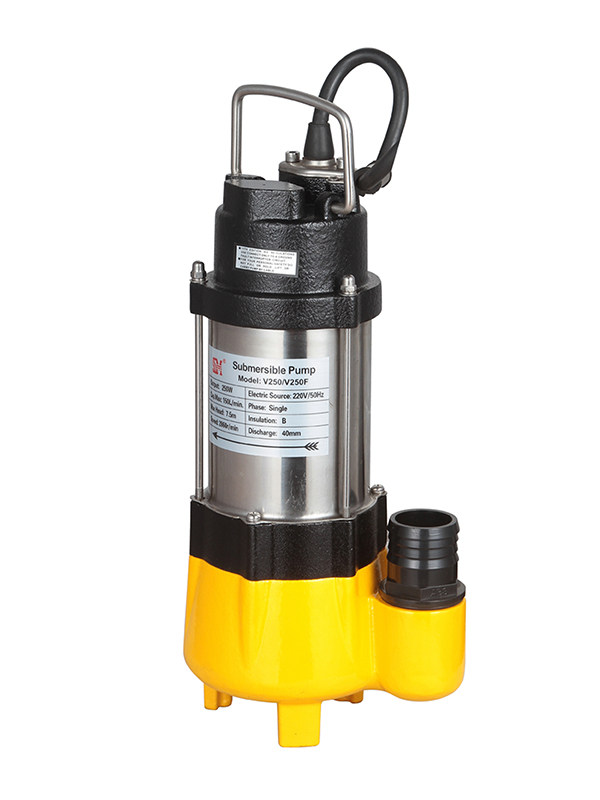

V370

產品描述

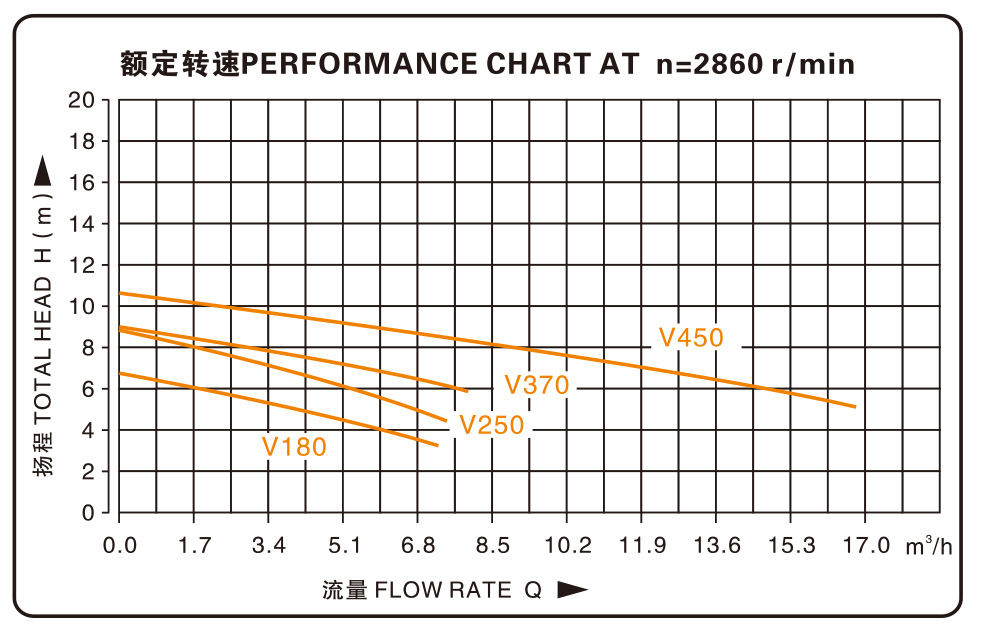

性能曲線 / Performance curve

用途與特點 / Function and Feature

V(WQ)污水潛水泵系列單、三相污水潛水電泵是目前較先進與理想的排污機具。用“V”來代替“WQ”表示泵的過流部件設計獨特，高效區寬廣，具有全揚程(無過載)，能在較大流量范圍內高效安全運行。葉輪的大通道防堵塞設計使泵能有效的輸送含有直徑15~25毫米的固體顆粒的雜質，長纖維等的流體。選用下吸結構和不銹鋼及特殊的鑄鐵制造具有排水徹底和耐腐蝕作用，配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器遇到過熱或過電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。

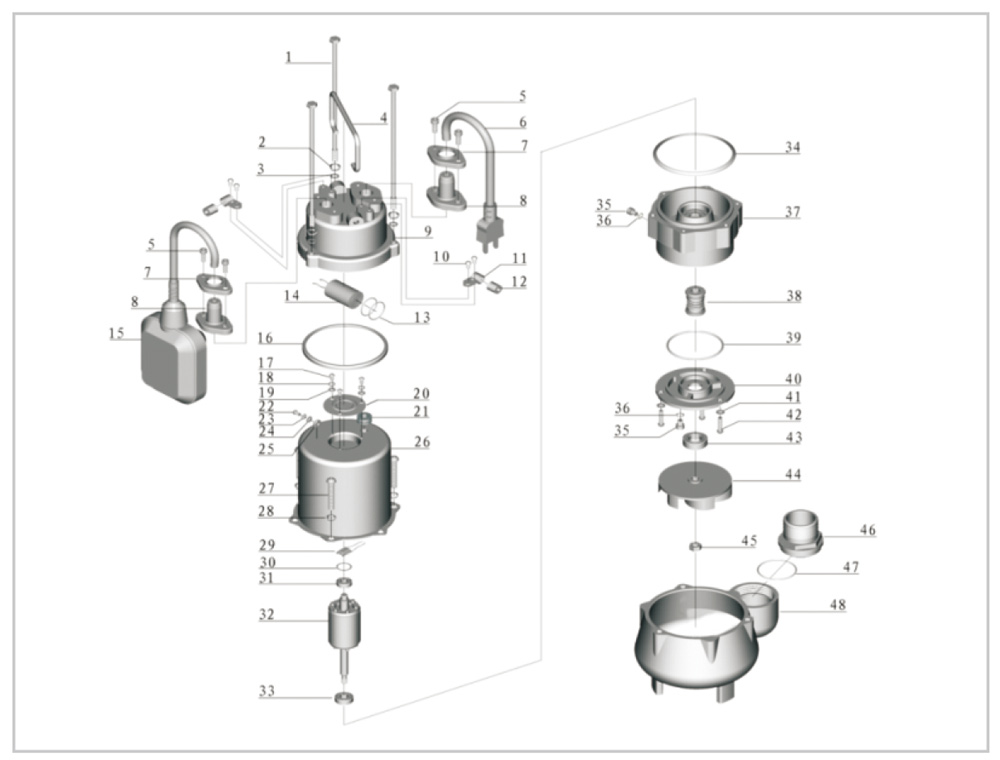

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Stretching washer
3	Washer
4	Handle
5	Screw
6	Cable
7	Flange
8	Cable protector
9	Capacitor cover
10	Screw
11	Cable presser
12	Protector
13	"O" ring
14	Capacitor
15	Float switch
16	Rubber washer
17	Screw
18	Stretching washer
19	Washer
20	Press plate
21	Line protector
22	Screw
23	Stretching washer
24	Washer

NO.	DESCRIPTION
25	Nut
26	Motor stator
27	Screw
28	Stretching washer
29	Thermal protector
30	Undulated washer
31	Ball bearing
32	Rotor
33	Ball bearing
34	Rubber washer
35	Screw
36	"O" ring
37	Connection part
38	Mechanical seal
39	"O" ring
40	Oil chamber cover
41	Washer
42	Screw
43	Oil seal
44	Impeller
45	Nut
46	Out-let connector
47	"O" ring
48	Pump body

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
V370(F)	370	40	220/380	160	9	13	18x19x43

型號后加“F”表示裝配浮球開關的水泵
