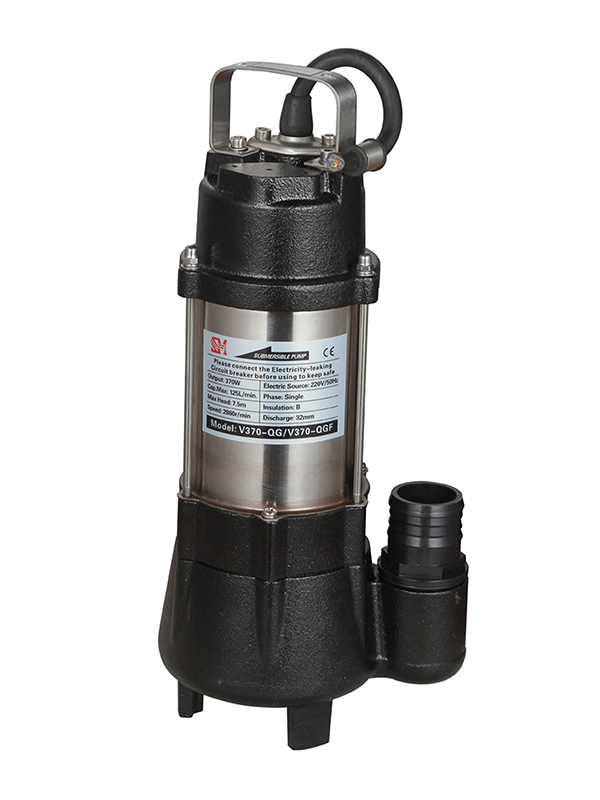

V370D

產品描述

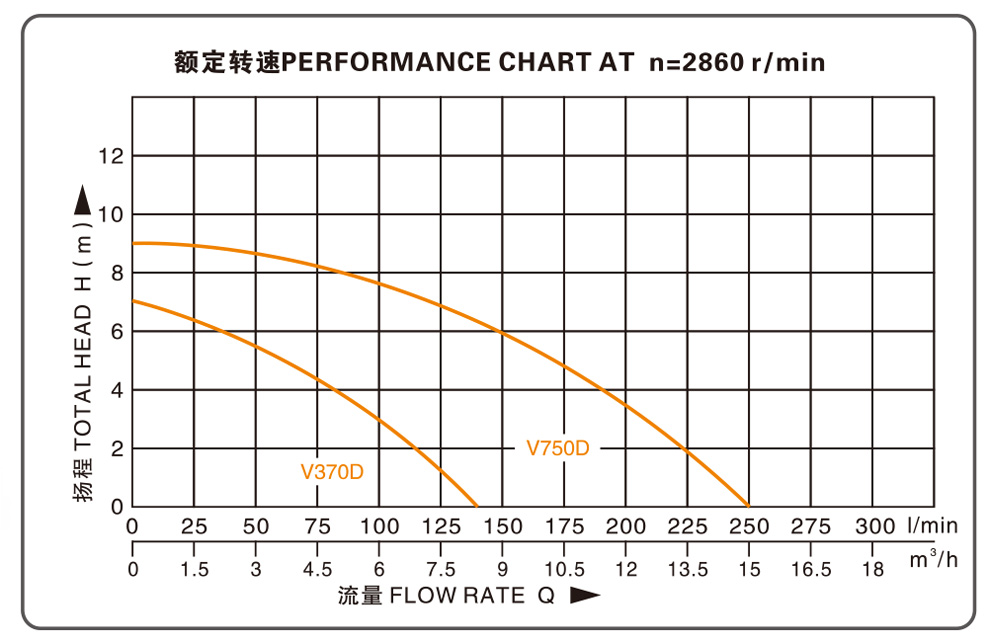

性能曲線 / Performance curve

用途與特點 / Function and Feature

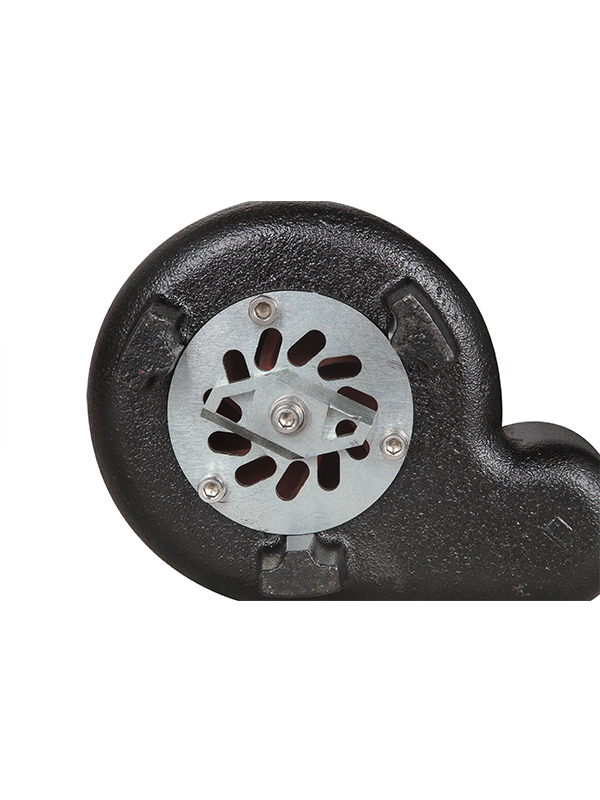

V(WQ)型帶切割行水潛水泵是目前較理想的排污機具，其特點是在泵的進口處安裝高速旋轉切割系統，能有效地切斷被吸入含有長纖維及堅硬體的雜物，避免了葉輪被纏繞卡死的現象，使泵能正常運行。適用于公共衛生、工礦及家庭排污。配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。( 可配三相電機)

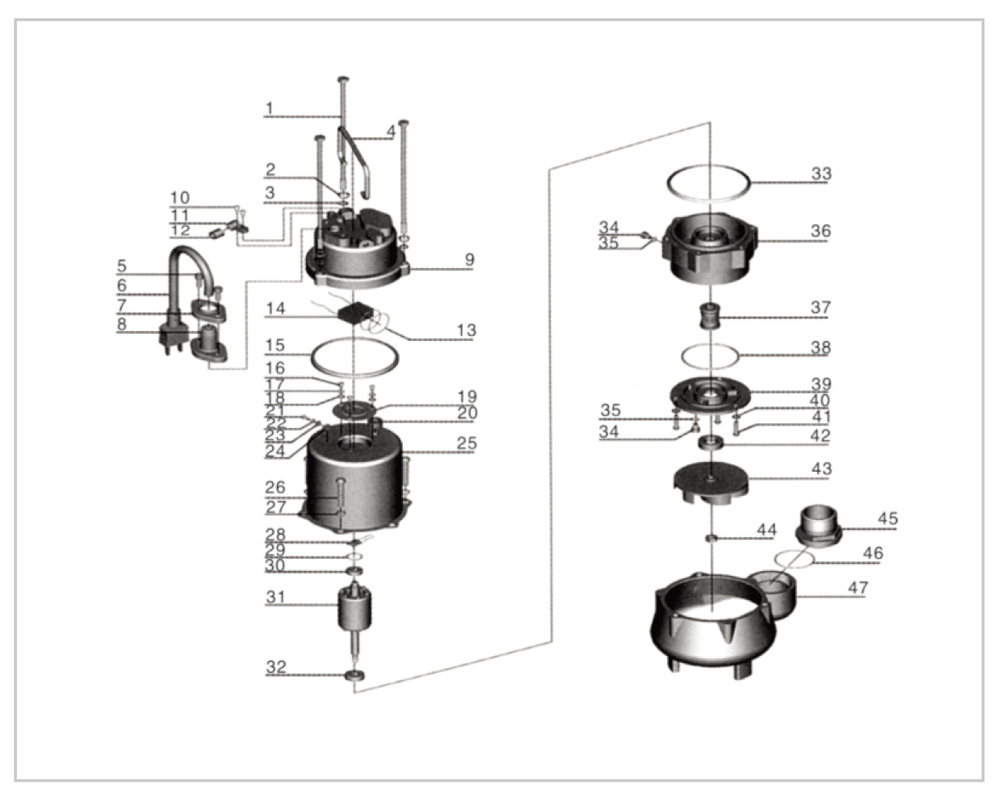

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Stretching washer
3	Washer
4	Handle
5	Screw
6	Cable
7	Flange
8	Cable protector
9	Capacitor cover
10	Screw
11	Cable presser
12	Protector
13	"O" ring
14	Capacitor
15	Rubber washer
16	Screw
17	Stretching washer
18	Washer
19	Press plate
20	Line protector
21	Screw
22	Stretching washer
23	Washer
24	Nut

NO.	DESCRIPTION
25	Motor stator
26	Screw
27	Stretching washer
28	Thermal protector
29	Undulated washer
30	Ball bearing
31	Rotor
32	Ball bearing
33	Rubber washer
34	Screw
35	"O" ring
36	Connection part
37	Mechanical seal
38	"O" ring
39	Oil chamber cover
40	Washer
41	Screw
42	Oil seal
43	Impeller
44	Nut
45	Out-let connector
46	"O" ring
47	Pump body

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
V370D(F)	370	40	220/380	140	7	11	18x19x40

型號后加“F”表示裝配浮球開關的水泵
