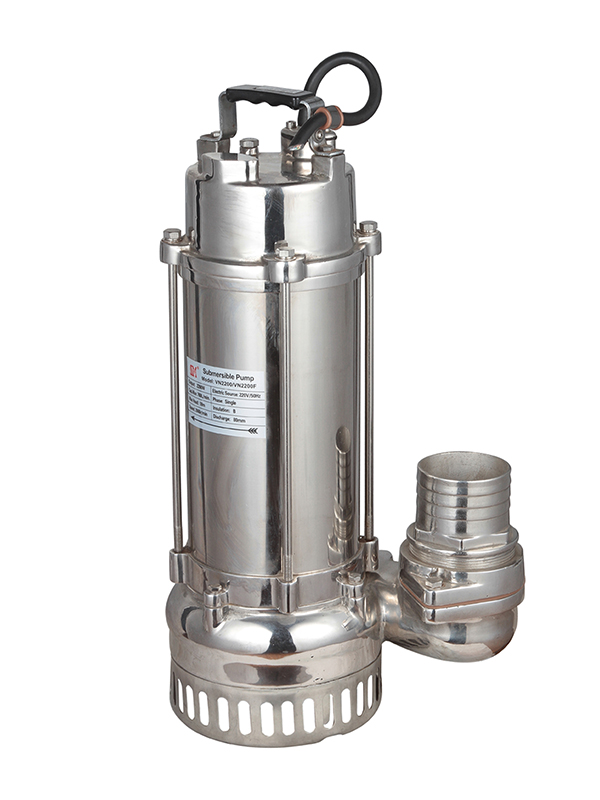

VN2200

產品描述

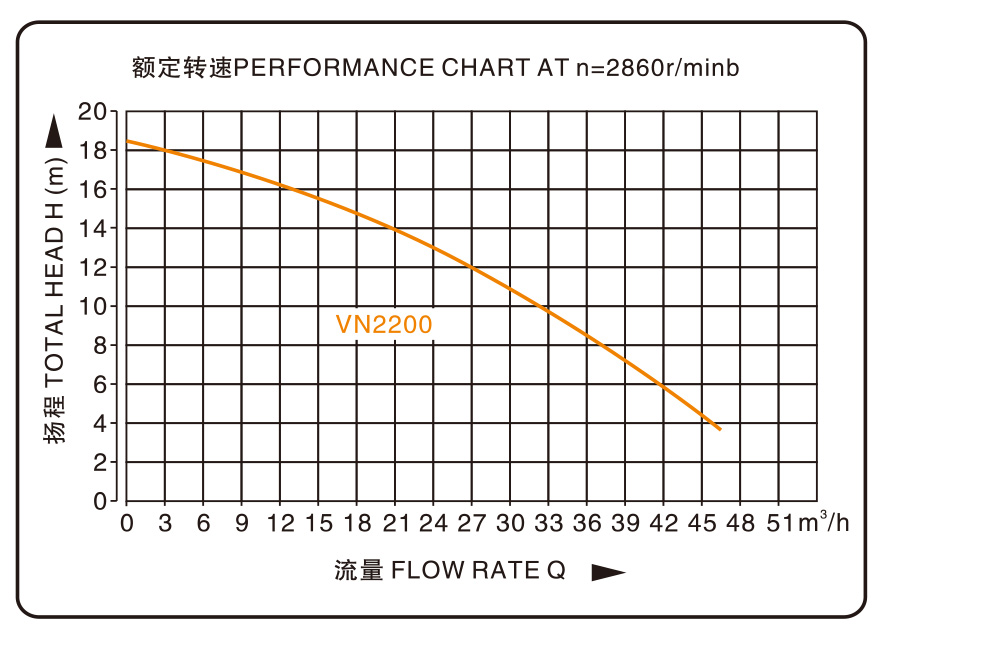

性能曲線 / Performance curve

用途與特點 / Function and Feature

VN(WQ)型全不銹鋼污水潛水泵是由“304-316/316L”鑄造而成的立式全不銹鋼潛水泵。采用旋流式下吸結構和獨特的過流設計，具有全揚程(無過載)高效區寬廣，排水徹底。適用于工礦企業，建筑工地，養殖業，藥液，飲料，海水及在物理性質類似水的一般腐蝕性介質中含有的直徑不超過10毫米等場所的輸送。電機內的保護器，遇到過熱或過電流時自動切斷電源，保證了泵甚至在較惡劣環境下的安全性與可靠性。

使用條件 / Condition of usag

◎ 以葉輪中心為基準，潛入水下深度不超過5米;

◎ 輸送介質溫度不超過40℃;

◎ 輸送介質的運動黏度為：7x10-7~23X10-6m²/s;

◎ 輸送介質的密度最大為1.2x10³kg/m³。

◎ 輸送介質的PH值304(4-10), 316(2-13)。

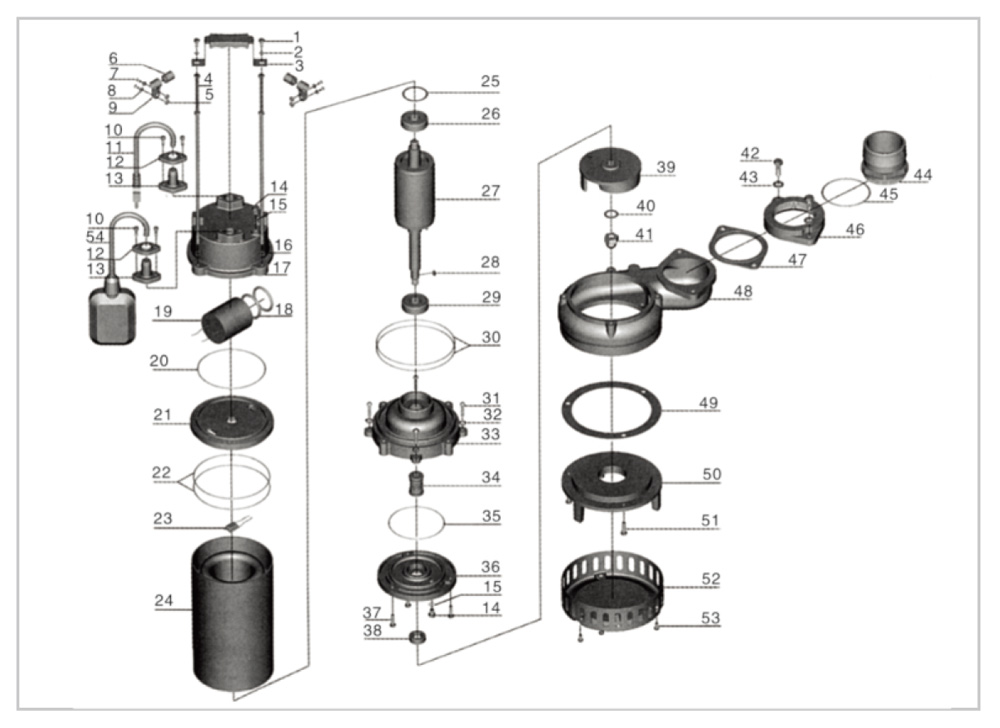

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Washer
3	Handle
4	Bolt
5	Nut
6	Protector
7	Screw
8	Washer
9	Cable presser
10	Screw
11	Cable
12	Flange
13	Cable protector
14	Bolt
15	"O" ring
16	Stretching washer
17	Capacitor cover
18	"O" ring
19	Capacitor
20	"O" ring
21	Motor stator
22	"O" ring
23	Thermal protector
24	Motor stator
25	Undulated washer
26	Ball bearing
27	Rotor
28	Key
29	Ball bearing

NO.	DESCRIPTION
30	"O" ring
31	Screw
32	Stretching washer
33	Connection part
34	Mechanical seal
35	"O" ring
36	Oil chamber cover
37	Bolt
38	Oil seal
39	Impeller
40	Washer
41	Nut
42	Bolt
43	Washer
44	Out-let connector
45	"O" ring
46	Connection nut
47	Rubber washer
48	Pump body
49	Rubber washer
50	Pump cover
51	Bolt
52	Filter mesh
53	Screw
54	Float switch

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
VN2200(F)	2200	80	220/380	760	18	36	58x22x33

型號后加“F”表示裝配浮球開關的水泵
